Interpretation of the sound system of the "nuclear submarine" in the electronic music bar

As everyone knows, electronic music party bars have high requirements for sound systems, which far exceed ordinary conditions. Therefore, large-scale electronic music on-site CLUBs in foreign countries usually look for famous slightly manufacturers to customize the sound systems, so as to meet the on-site needs of high sound pressure, large dynamics, and long-term work (2 to 3 consecutive days) without stopping the system.

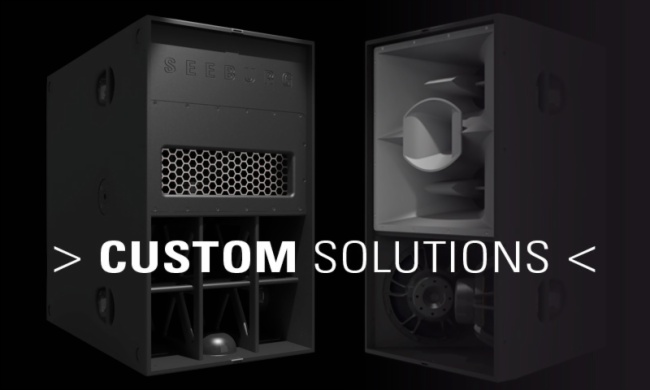

Among the audio systems of the Electronic Music Bar, in addition to the well-known British Funktion-One, today we introduce a customized nuclear submarine audio system-PS-1 derived from the German Sound Bo SEEBURG acoustic line"". On the official website of this German manufacturer, the PS-1 system is placed in the Custom Solutions column, which is undoubtedly a customized limited edition system. According to the working habits of the Germans, the possibility of mass industrial production of this system is almost zero, so this is destined to be a luxurious audio set, and only a small number of electronic audio players who pursue the ultimate can own it.

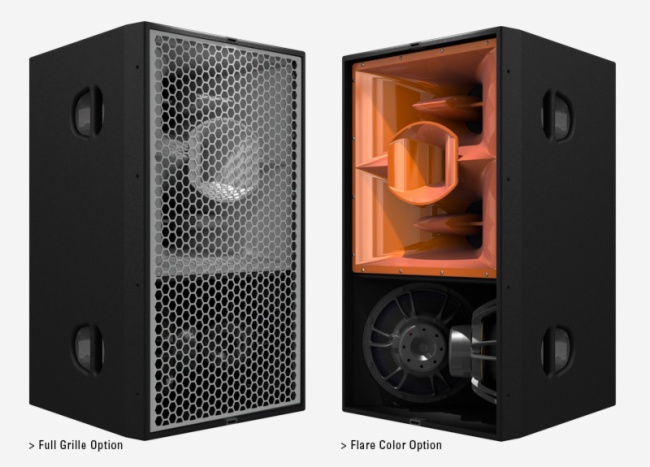

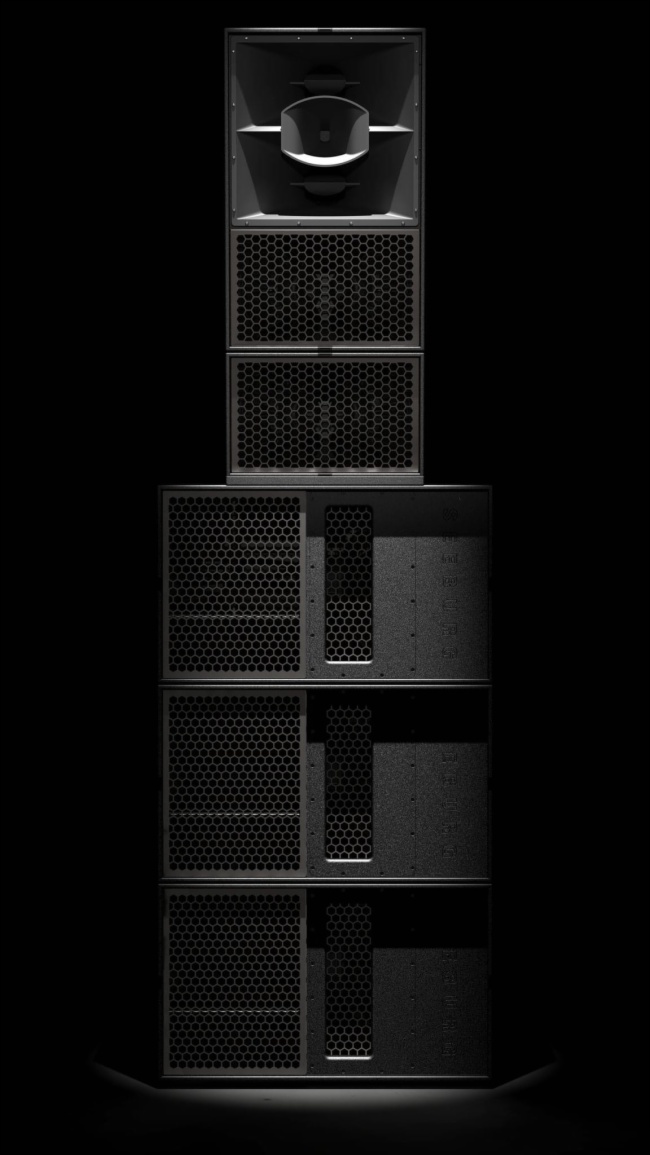

The PS-1 is a four-frequency audio system. On the top is an exaggerated three-frequency point sound source speaker. Dual 12-inch woofers are matched with dual 6.5-inch midrange units. The tweeter unit is a 1.4-inch throat compression driver (3VC). This unit configuration allows this speaker to work within the bandwidth range of 75Hz 20kHz(-6dB). The colors of the horn speakers, grid grids and boxes can be customized, fully considering the needs of architects and designers. The overall height of the slightly reaches 92cm and the width is 58cm. When viewed from the front, the PS-1 looks like a muscular man. You can know the strong output sound pressure level without making a sound!

The specially designed horn is designed with pure acoustic theory and does not require the use of an equalizer to adjust the tone to avoid sag in the frequency response and phase interference between multiple units. Its unique dual coaxial mid-treble cross-section provides a very precise and uniform coverage pattern of 80x40. All three sound sources are actually merged into one sound source, resulting in excellent spatial sound field resolution. The PS-1's incredible conversion of sound and energy, without distortion or piercing sound, gives the audience full commitment to the live performance of DJ artist music. Therefore, it can be seen from this that the manufacturer's development engineers hope that this system is a work of art in the electronic music world, both acoustically and visually!

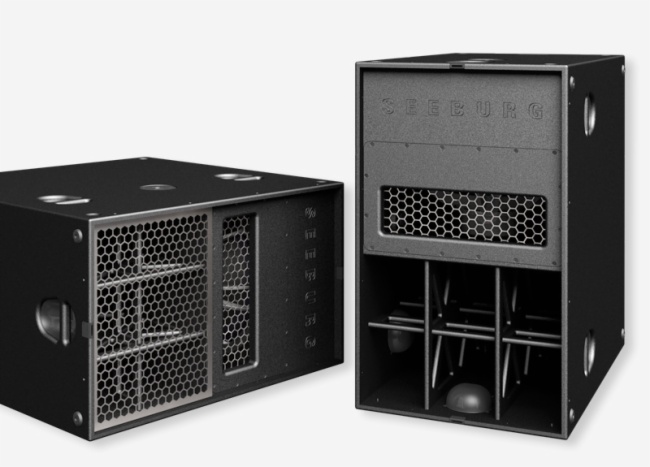

In order to expand the low frequency of the system, the manufacturer has also introduced high-performance subwoofers suitable for PS series speaker systems and universal use. The PS-Sub adopts a novel and complex bass loading principle that, in addition to the wide available frequency range, also provides extremely high efficiency and extremely accurate and clear bass reproduction starting from 28 Hz and above. This is a real bass dive. The frequency response data given by the German manufacturer is: 28 Hz - 160 Hz (-6 dB), and the maximum output sound pressure level of 141dB. This is sounded by a 21-inch neodymium driver (with a 4.5-inch long-stroke coil) through a complex loading principle box, which is designed to cool very effectively, so it can handle tens of hours of continuous high-power work. The PS-Sub and PS-1 are paired with each other to a truly reproduced bass frequency as low as 28Hz, making this nuclear submarine system perform as its name suggests!

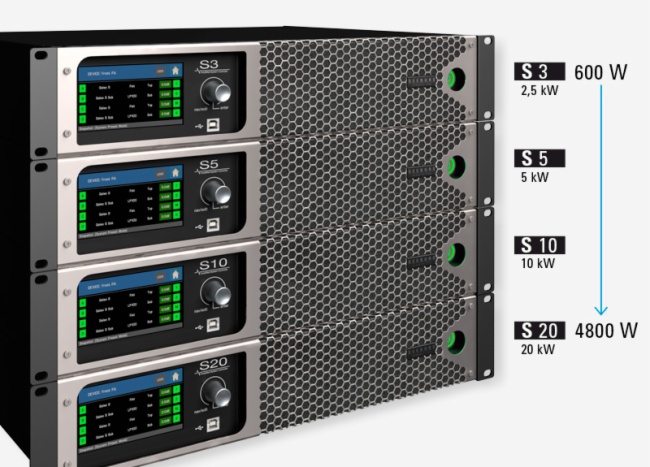

The last thing I have to mention is the driver amplifier of this customized nuclear submarine electronic sound system. It is also the four-channel system DSP amplifier S10/S20 recommended by the same factory: 44,800 W/4 (up to nearly 20,000 watts) with high power and low distortion output., the S series 4-channel amplification system controller combines the most advanced power electronics with advanced DSP, and can be easily operated through the touch display. Its intelligent power sharing feature ensures that available power is used very efficiently when driving asymmetric loads. According to the AES 67 standard, it can be extended through GPIO and Audio over Ethernet (AoE).

Once the PS-1 was launched, it quickly attracted the attention of DJ artists and electronic bar owners around the world. Many well-known DJs have named and requested to test the system. The owner of Bootshaus CLUB (based in Cologne, Germany), ranked fifth in the world, just at that time needed a new sound system to renovate his BLCKBX (black box) space. After in-depth testing of solutions from multiple manufacturers, he finally decided to purchase a customized PS-1 sound system from SEEBURG.

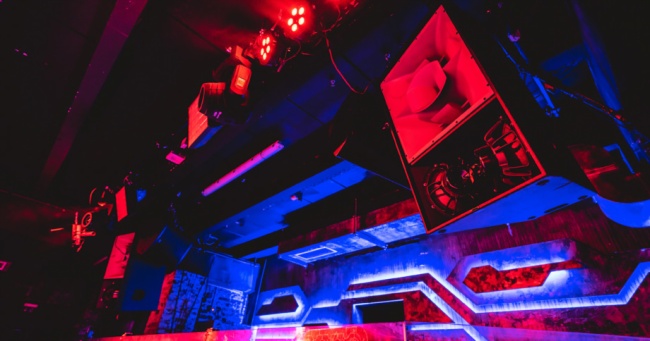

The new main system of the BLCKBX (Black Box) consists of four PS1 tops and four PS Subs, while using two X8 coaxial and two G Sub1501 for DJ monitoring. Bootshaus is housed in an old houseboat that is part of the Rhine industrial heritage. As early as 15 years ago, the music provided by Bootshaus began to become diversified. This time, its indoor venue is equipped with highly iconic PS-1 equipment, making it truly a veritable electronic music CLUB, which can provide It brings the audience a feeling like a large indoor electronic music festival, which is enough to ignite the enthusiasm of 1200 players entering. In addition, Bootshaus also has a very spacious outdoor space, where players around the world can enjoy the sun during the day and bathe in the stars at night. Moreover, in addition to the excellent sound system, the special effects configuration of this nightclub is also quite high, and the top of the dance floor is equipped with multiple fire-breathing devices. When the music reaches its climax, a few bursts of fire suddenly erupt, which can push people's excitement to a climax and make the atmosphere at the scene extremely high.
It can be imagined that at Bootshaus CLUB, with the stunning sound effects and cool special effects of the PS-1 sound system, everyone who comes here can release themselves to their fullest, immerse themselves in the carnival world of electronic music, and enjoy unparalleled entertainment experience. This place has undoubtedly become a paradise for electronic music lovers, attracting countless people to experience its unique charm.
