Skyworth launches A5F Pro Mini LED TV and joins hands with Zhaochi Guangyuan to reshape the high-end

In the current competitive environment of the TV industry, major brands are making every effort to seek breakthroughs in key areas such as image quality, sound quality and intelligent experience. Skyworth, as one of the leading brands in the industry, has recently launched the A5F Pro, a Mini LED TV that is better than oled. Once this product was unveiled, it aroused enthusiastic responses in the market. Not only does it break the advantages of OLED in dark field performance with its ultra-black wide-angle paper screen technology, the 75-inch version also introduces the Harpoon PCB + COB backlight module solution of Zhaochi Optical Element, setting a new brand in products at the same price. Quality benchmark.
Beyond OLED!| 超越OLED! Analyze Skyworth A5F Pro's "highest specification backlight solution at the same price"" src="https://www.52dp.cn/d/file/p/2025/04-02/52dp_1743579828226.jpg" />
Break the price ceiling of high-end Mini LED TVs
OLED TVs have long dominated the high-end TV market due to the high contrast brought by their self-luminous characteristics. However, problems such as high selling prices, easy screen-burning and reflection from mirror screens always follow suit, causing many troubles to users.
创维精准洞察市场痛点，深度整合京东方的屏幕技术，并选用 "同价位最高规格的背光方案"，最终成功推出 "比 OLED 更优的 Mini LED 电视" A5F Pro。
根据 "创维电视" 官方介绍，A5F Pro 搭载的极黑广角类纸屏，集多种先进屏体技术之精华。It cleverly integrates the three major screen technologies of LR low reflection layer, STW full viewing angle compensation layer, and AG anti-glare layer, overcoming the problems of reflection, glare, and viewing angle color cast in OLED TVs and traditional Mini LED TVs in one fell swoop. It achieves excellent display effects of natural black, high contrast, no color cast at all viewing angles, and zero reflection and zero glare. It not only competes with OLED TVs in terms of display performance, but even surpasses them in some aspects.
在价格方面，A5F Pro 极具竞争力。The prices for 65-inch, 75-inch, 85-inch and 100-inch are 4299 yuan, 5399 yuan, 7299 yuan and 14499 yuan respectively. Taking Shanghai Home Grid data as an example, the average price of OLED flagship models during the same period was about 25999 yuan. This means that consumers only need to spend about 20% of the price of an OLED TV to have a Mini LED high-end TV that transcends the OLED experience.
Beyond OLED!| 超越OLED! Analyze Skyworth A5F Pro's "highest specification backlight solution at the same price"" src="https://www.52dp.cn/d/file/p/2025/04-02/52dp_1743579828694.jpg" />
The best specifications at the same price! Zhaochi Guangyuan helps A5F Pro 75-inch display upgrade
As the core supplier of Skyworth A5F Pro's 75-inch backlight solution, Zhaochi Guangyuan has worked hard from three key directions to carefully create" the highest specification backlight solution at the same price", helping the A5F Pro strengthen its" high-quality and price-ratio" characteristics.
"The one-light-one-area solution allows area dimming to be more precise and greatly improves the detail display ability and layered sense of the picture".
"一灯一区" 方案让区域调光更为精细，大幅提升画面的细节展现能力和层次感。Coupled with BOE's ADS Pro screen and Skyworth's self-developed AI image quality chip, the A5F Pro achieves full-link AI halo control, with a 32% increase in uniformity, a 20% increase in light transmittance, and a 70.5% increase in halo control capabilities.
PCBs account for an important part of the cost composition of Mini LED backlights.

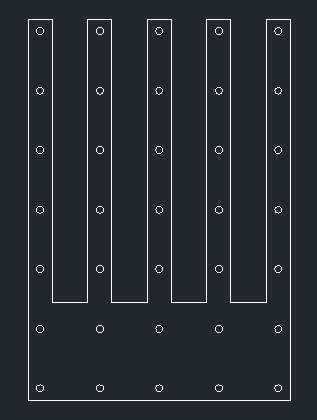

PCB 在 Mini LED 背光成本构成中占据重要部分。In order to optimize costs, Zhaochi Guangyuan adopted the Harpoon PCB solution and successfully reduced the cost of PCB materials by 35%. At the same time, high-voltage chips are used to reduce the number of LED chips in series and simplify PCB wiring, thereby effectively reducing production costs and helping Skyworth popularize high-end technology to mainstream price segments. The PCB material used in the Harpoon PCB solution (right) is only 65% of that of the entire board solution (left).
Beyond OLED!| 超越OLED! Analyze Skyworth A5F Pro's "highest specification backlight solution at the same price"" src="https://www.52dp.cn/d/file/p/2025/04-02/52dp_1743579828965.jpg" />

COB packaging solution creates a thin and light high-end TV experience
Zhaochi Light adopts a Chip-on- Board (COB) packaging process to directly mount the LED chip on the PCB substrate, which greatly simplifies the packaging structure and significantly reduces the thickness of the backlight module. The light exit angle and OP value of the chip are improved through secondary optical design, which ensures excellent display effects while realizing the extremely slim body design of the TV product.
Beyond OLED!| 超越OLED! Analyze Skyworth A5F Pro's "highest specification backlight solution at the same price"" src="https://www.52dp.cn/d/file/p/2025/04-02/52dp_1743579829101.jpg" />
Zhaochi Guangyuan: The leader in the field of Mini LED backlights
As the global core supplier of Mini LED backlights, Zhaochi Guangyuan continues to lead the upgrading and development of the industry.
As an old backlight factory, Zhaochi Guangyuan has profound technical heritage.
兆驰光元作为老牌背光厂，拥有深厚的技术沉淀。Since 2016, flip-chip technology has been deployed, and in 2018, it launched the research and development of Mini LED backlights. It is one of the earliest companies in China to achieve mass production of Mini LED backlights. Its product layout is comprehensive, covering multiple technical routes such as POB, COB, and NCSP, and has high mass production stability. In 2024, Zhaochi Optoelectronics will upgrade COB blue light technology and upgrade the face-shaped ball head to M-shaped dispensing to accurately control optical performance and production efficiency; the OP value will be increased from 1:2.2 to 1:3.5, reaching the industry-leading level, reducing the use of Mini LED chips and further enhancing the cost-effective advantage.
In 2024, Zhaochi Guangyuan added 45 COB wires, and currently has become the world's largest manufacturer of Mini COB backlight modules with a scale of 50 COB wires.
2024 年，兆驰光元新增 45 条 COB 线体，目前以 50 条 COB 线体的规模成为全球最大的 Mini COB 背光模组生产厂家。At the same time, the company successfully launched high-power COB white light strips, Mini COB blue light strips and Mini COB white light solutions (CSP), and continued to improve the product layout of Mini COB backlight modules.
Zhaochi Group has formed strong competitiveness in the field of intelligent manufacturing with agile response, high quality and efficiency, and on-time delivery. Zhaochi Guangyuan itself has also passed the three-level assessment of the maturity of intelligent manufacturing capabilities.
兆驰集团在 "智能制造" 领域已形成 "敏捷响应、优质高效、准时交付" 的强大竞争力，兆驰光元本身也通过了智能制造能力成熟度三级评估。Zhaochi Guangyuan integrates four core architectures: fully intelligent logistics, production informatization, production planning and automatic scheduling, and intelligent warehousing, giving full play to the advantages of intelligent manufacturing in empowering Mini LED backlights.
此次与创维的合作，再次彰显了兆驰光元 "技术 + 产能 + 智造" 三驾马车在高端显示领域的雄厚实力。It is worth noting that based on the original LED vertical integration layout, in 2025, Zhaochi Group will further adjust its business and integrate its three intelligent terminal display businesses: display terminal business, COB direct display business, and Mini LED backlight business. Driven by this strategy, Zhaochi Group's COB core technology accumulated in the field of direct display and the high-quality customer resources accumulated in the display terminal business will provide strong support to Zhaochi Optics and help its Mini COB backlight business continue to develop and grow. In the future, Zhaochi Guangyuan is expected to join hands with more terminal brands to accelerate the process of promoting universal benefits for high-end displays.
