Analyze outdoor COB display screens from Asian Games events

2023 is the first year of COB LED display explosion. Data predicts that its growth rate will reach more than 50%. In this context, it has become an industry consensus to further increase COB display technology. Among them, Zhouming Technology's global launch of outdoor COB LED display products and solutions with a market breakthrough have opened the door to a new outdoor track with COB technology in addition to the needs of traditional indoor applications.

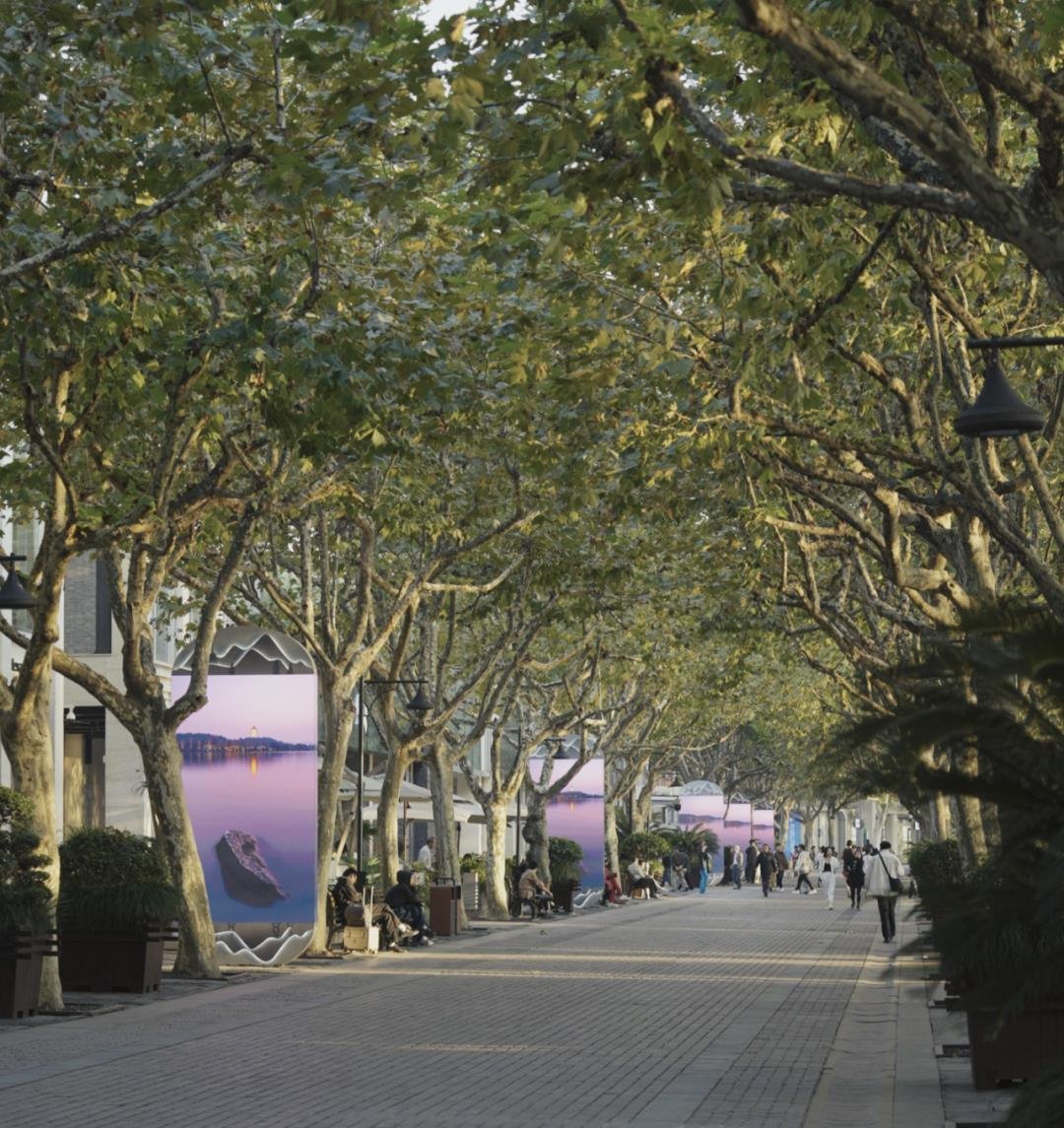

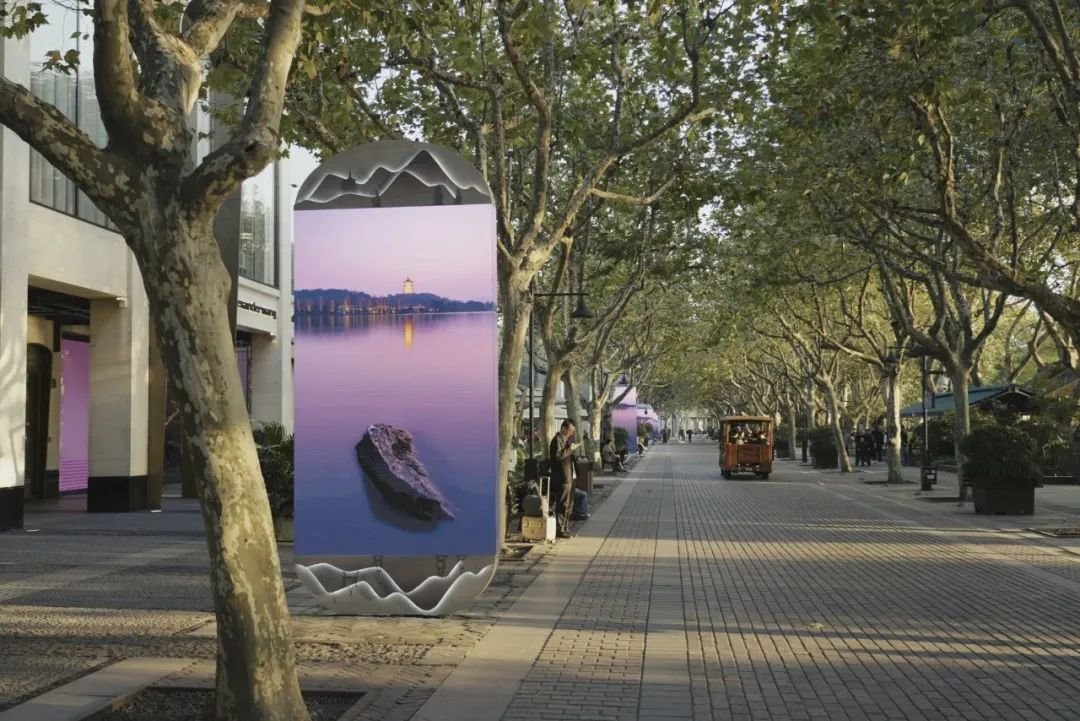

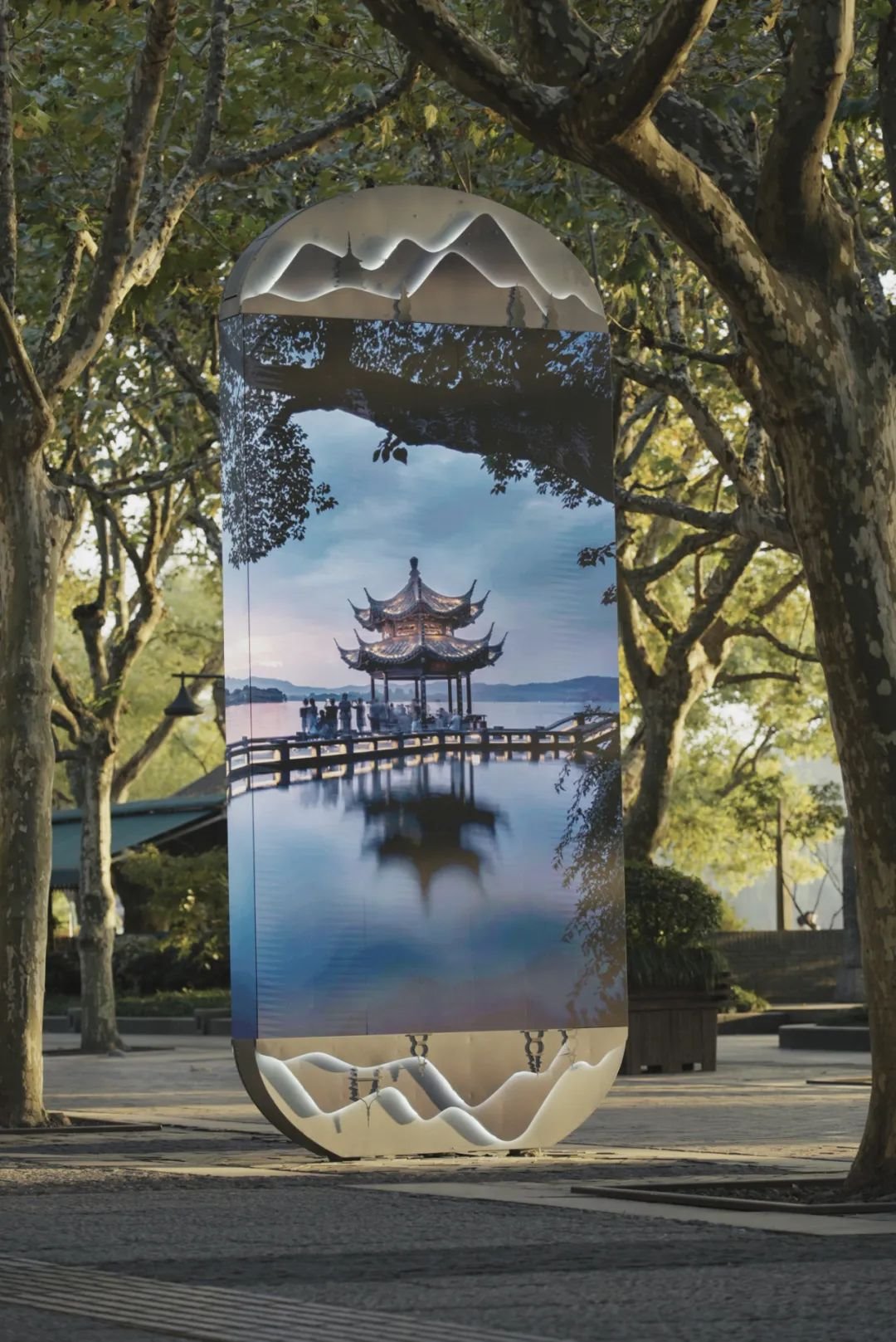

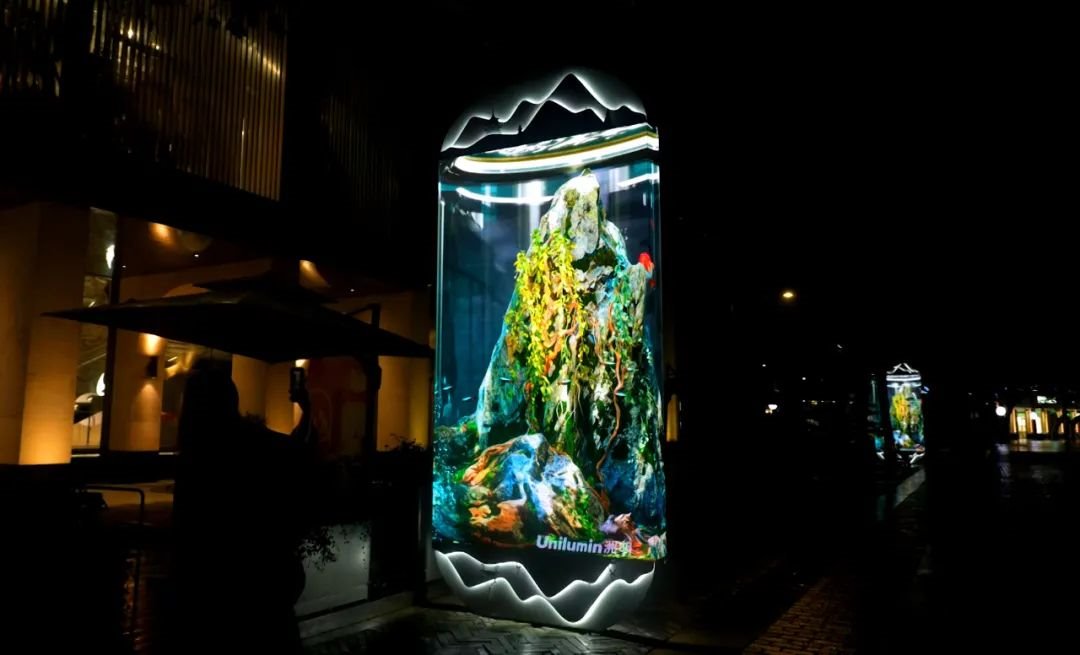

During the 2023 Hangzhou Asian Games, the world's first outdoor COB application case created by Zhouming was unveiled by the West Lake. It is reported that this product not only has the traditional advantages of traditional COB products such as high reliability, high definition, ultra-light and thin, high stability under all-weather conditions, wear-resistant and easy cleaning, but also has higher brightness of more than 7000nits and more than 10000:1. Leading contrast ratio has achieved a new height in outdoor LED display applications.

----

The breakthrough of COB products outdoor 0 will inevitably open a new chapter in COB application and market development! Industry experts pointed out that in the past 10 years, Zhouming COB display technology has achieved leapfrog development from scratch, from small spacing to micro spacing, from mini LED to micro LED, from small supply to mass manufacturing, from indoor high-end application to indoor and outdoor popularization. development. It has become one of the most growing sectors in Zhouming's LED product line.

----

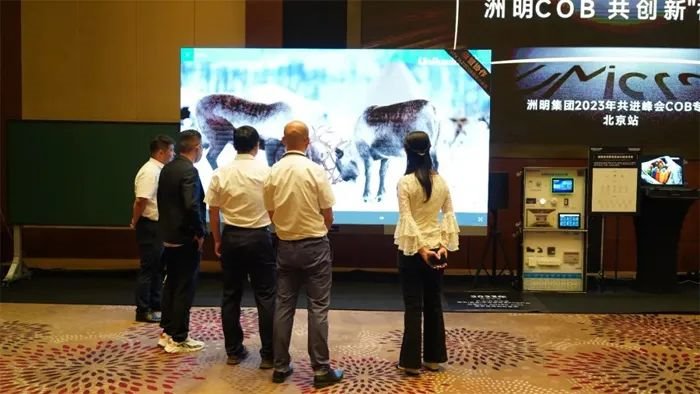

On June 20, 2023, Zhouming Group solemnly held a Mini/Micro full-scene product launch conference. At the meeting, Zhou Ming led the world in proposing for the first time an industrial development concept covering all six COB application scenarios. Zhouming Technology shared the group's Mini/Micro COB industry technical layout with six Mini/Micro product series covering P0.4 to P4 point spacing, including UMicro, UMini III Pro, UMini III, UMiniW, green energy-saving LMini, and outdoor COB, and interpreted the full form, full scene, and full application COB displays the future picture.

Among the six major application scenarios of Zhouming Technology COB, UMicro0.4 breaks through mass production and new outdoor COB products, achieving comprehensive breakthroughs in technological limits and new application frontiers, once again leading the high-quality development trend of the global LED direct display market. The continuous expansion of technological limits and application frontiers will also be one of the driving forces for the continued growth of COB products in the future. The relevant person in charge of Zhouming Technology believes that COB technology has a large-scale foundation and is expected to achieve a replacement rate of 35 - 50% within three years. Zhouming COB supply will maintain an annual growth rate of 30%.

#From indoor to outdoor, COB LEDs drive into a new track

What does it mean to launch the first outdoor COB product? The traditional LED direct display market is divided into two distinct sectors: indoor and outdoor. Each supports almost half of the market. The move of COB technology to the outdoors first means a huge increase in the scale of potential applications.

According to data from the China Research Institute of Pricewaterhouse-based Industries, the market size of my country's LED display screens in the first half of 2023 will be approximately 24.2 billion yuan, of which the market size of small-pitch LED displays mainly for indoor areas will be approximately 9.1 billion yuan. It can be seen that the outdoor and indoor LED screen markets each account for almost half of the sky.

On the other hand, according to data from Intelligent Research Consulting, the market size of China's outdoor electronic screen advertising industry exceeded 20 billion yuan in 2019 and exceeded 30 billion yuan in 2022. It is expected to exceed 38 billion yuan in 2023-the rapidly growing outdoor advertising demand is one of the main monetization directions for outdoor LED screens. Benefiting from the in-depth commercialization of 5G and the support of creative technology forms such as naked-eye 3D, corner 3D, curved special effects and night scenes, the value of LED outdoor applications has been continuously enhanced.

Therefore, COB products actually face dual opportunities in the outdoor market: upgrading existing experience and incremental market expansion. Among them, COB products will bring new experiences to outdoor applications, which will be their main competitive advantage.

In this regard, Zhouming Technology pointed out that one of the main progress points of outdoor advertising and display systems in the 5G and future 5.5G/6G era is the development of content towards high-definition, ultra-high definition, 3D and holographic display effects. Higher display effect requirements will inevitably require better screen technical support. This not only includes the optimization of traditional technical parameters such as color, brightness, and contrast, but also includes the improvement of resolution density, the optimization of viewing angle, and the overcoming of grainization of visual pixels.

----

COB display technology moves from indoor to outdoor. It is essentially a scene that meets the needs of closer viewing distances and higher requirements for image quality and product quality. It attacks the technical output and performance upgrades of the traditional outdoor demand market-bringing a performance revolution to outdoor display solutions., this is a key change for COB technology to enter the outdoor market, and it is also an inevitable change that adapts to the growing demand for high-quality content display in the outdoor market in the future.

----

"The traditional understanding of COB is that it can reduce the spacing of LEDs; but at a larger spacing, COB technology can also bring about a revolution in the visual experience. Industry analysis pointed out that Zhouming Outdoor COB's 0 breakthrough is to break this inherent thinking and allow COB's technical advantages to shine in larger application scenarios.

#From ultra-micro spacing to the outdoor market, COB has stronger technical advantages

In 2016, Zhouming was the first in the world to achieve mass production of Mini LED COB; in 2018, it launched the P0.9 COB product and took the lead again; in 2020, the exclusive patented technology of the P0.7 COB product EBL+ was released, realizing high-density, ultra-small-pitch full flip chip technology, a comprehensive leap in Molding process optimization and surface technology optimization; in 2022, Zhouming's P0.4 product will be launched again in the world, and Zhouming's characteristic cutting-edge technologies in eight dimensions have opened up a new realm of limits for COB products...

Along the way, we can see that the advancement of COB technology continues to be accompanied by the narrowing of the spacing indicator. In 2023, Zhouming outdoor COB products will target p4.0/p1.9 outdoor products. From continuous microfilming to outdoor transformation, it can be said that COB technology has reached another turning point.

Zhouming outdoor COB technology products inherit the many technical advantages of Zhouming Technology COB series products in five major processes: chip, substrate, packaging, drive, and system. Among them, the failure rate of lamp beads of full flip-chip RGB chip +COB packaging technology has been greatly reduced, Zhou Ming's self-developed die bonding and mixed-weaving algorithm improves higher consistency and uniformity of products, and EBL+ multilayer optical processing technology (Zhou Ming's exclusive patent) achieves higher visual contrast, the Molding design process comprehensively improves the viewing angle effect, EDL+ drive technology is more precise and adjusts, and is also more energy-saving and power-saving. It is self-adapting to Zhou Ming's independent UOS system, and full gray level correction +HDR supports better image quality debugging and display.

On the other hand, among outdoor display products, Zhou Ming has also brought newly developed product details to the application of COB technology. For example, the signal adopts LVDS differential transmission technology, which has a longer transmission distance, a lower cost, and a significant reduction in failure rate by more than 60%. It adopts the original dual-chip display technology, which improves the brightness by more than 100% compared with a conventional single chip. The same brightness, saves energy. More than 50%, and the temperature rise is reduced by more than 20 degrees, which not only solves the COB outdoor brightness problem, but also greatly improves the economics of the overall operating cost; Original spraying UV technology, glue filling treatment on the back of the module combined with full glue filling technology to achieve IP65 waterproof. It has obvious advantages in dust, moisture, collision, shock, cleaning, etc., and can easily cope with various harsh environmental tests; The module adopts 8pcs magnetic suction fixed, and the box adopts a four-stage independent design. The modular design of the maintenance power& receiving card is combined with the front maintenance design, which greatly improves the convenience of engineering operations and reduces installation and maintenance costs...

It can be said that Zhouming Outdoor COB products are epoch-making innovative products provided by combining indoor technology accumulation and outdoor characteristics to meet the development trend of new high-quality outdoor display needs.
